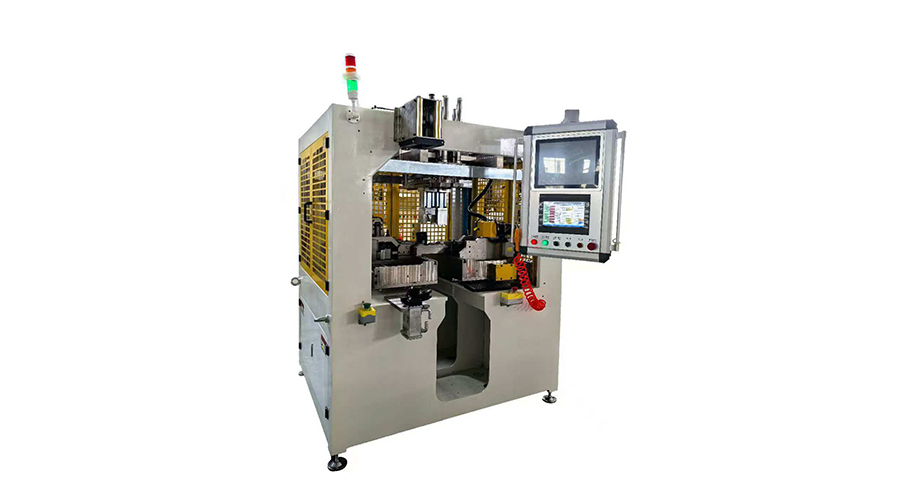

Servo Power Plastic Tank Automatic Crimping Machine
-
To clinch radiator header plate, gasket and plastic tank together.
It is consisted of long side and short side clinching structure. To clamp header plate teeth firmly on plastic tank edge, so to have the core and plastic tank to be tightly assembled together. Therefore, to create a sealed space between crimped plastic tank and the core.
Description
Workpiece Dimension
Core height direction:350-950mm
Core width direction:100-800mm
Crimping Way
Internal
Machine running time
Around 35 s
Drive Mode
Pneumatic/ Servo
Overall Dimension
1800*1300*1900mm
Weight
3.2 T
