- Name:

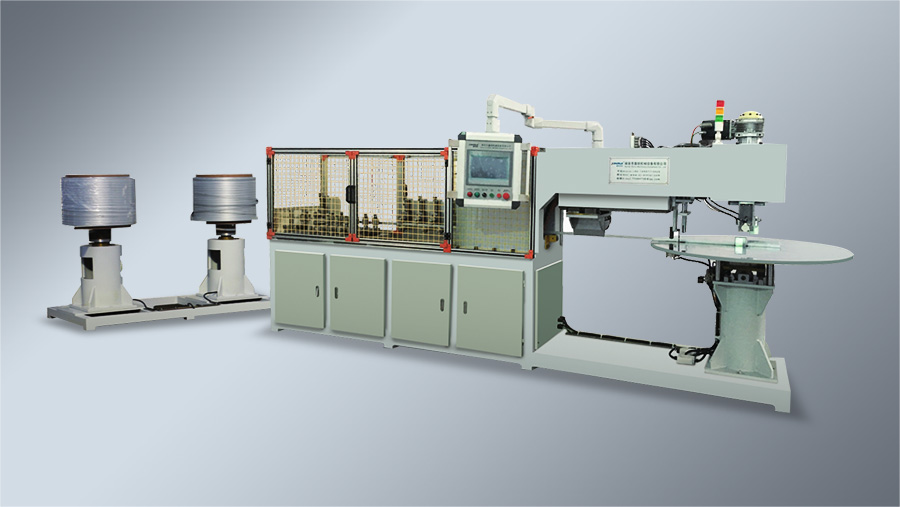

Automatic Tube Bending Machine
-
To have the aluminum tubes coil go through decoiling,straightening,bending,necking down and cutting into the requi red bending tubes.Through changing different tooling to bend for various flat tubes and data can be directly saved.It is consists of pneumatic system,electrical system and servo system.Bending dimension with high precision,efficiently protect flat tube surface and eventually ensu re forming quality stability and reliability.Description
Workpiece Specification
as per customer's requirements
Workpiece length
as per customer's requirements
Flat tube specification
Thickness:1-3mm
Width:12-32mm
Max Bending Quantity
50 Bends
Flat tube coil dimension
Lnner diameter:Min.400mm
Outer diameter:Max.1200mm
Pipe Processed per time
1 pc/time
Decoiling/Feeding/Straightening/Bending/Cutting
Automatic
Lubricating Way
Automatic
Production capacity
Around 230 pcs/shift(as per actual workpiece dimension)
Drive mode
Servo+Pneumatic
Overall Dimension
6000*1300*1700mm
Weight
2.5 T
